Best Spindle Sanders

Updated November 2021
Bottom line
Pros
Cons
Best of the Best
WEN Oscillating Belt and Spindle Sander
WEN
Oscillating Belt and Spindle Sander
Check Price
Most Comprehensive
Bottom Line

Perfect tool to accomplish a wide range of wood-shaping tasks.

Pros

Unit oscillates up to 58 times per minute to prolong the life of the sleeve and reduce burning. Functions as a belt and spindle sander. Purchase includes a beveling work table, four sanding drums, five throat plates, and more.

Cons

This sander works best on mid- to lighter-duty projects and might not hold up if pushed too hard.

Best Bang for the Buck
Triton Oscillating Spindle Sander
Triton
Oscillating Spindle Sander
Check Price
Easy to Use
Bottom Line

This sander gets high marks for its ease of use and the overall excellent way that it operates.

Pros

Dust collection feature and smooth running get a lot of praise. Easy to change the spindles. Solidly constructed. Powerful yet easy to use. Includes six sanding sleeves with matching rubber drums and table inserts.

Cons

Some buyers report problems with the timing belt and other parts failing within a few months.

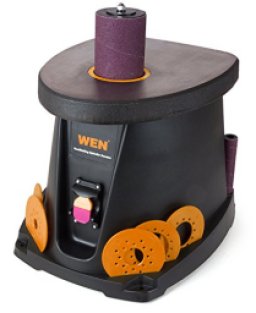

WEN Oscillating Spindle Sander
WEN
Oscillating Spindle Sander
Check Price
Versatile Machine
Bottom Line

This sander combines quality and a wide range of top features, all at a very attractive price.

Pros

Solid construction and smoother oscillating action. Durable. Light enough to easily move around. Dust-collection system works well. Good variety of sanding sleeves: 1/2 inch, 3/4 inch, 1 inch, 1.5 inch, and 2 inches.

Cons

Machine runs very loudly, so plan on also purchasing earplugs. No onboard storage area for the extra washers.

Shop Fox Single Phase Oscillating Spindle Sander
Shop Fox
Single Phase Oscillating Spindle Sander
Check Price
Sturdy and Powerful
Bottom Line

Durable, solid sander that is ready to go right out of the box.

Pros

The powerful motor delivers up to 3.5 amps of sanding power. Easy setup. It is very well-balanced and smooth running. Light weight enough to easily store when not in use. Durable, sturdy, and powerful.

Cons

Dust-collection port is not a standard size, so you may end up scrambling to find an adapter.

POWERTEC Oscillating Spindle Sander
POWERTEC
Oscillating Spindle Sander
Check Price
Most Comprehensive
Bottom Line

A basic spindle sander that can be used on all arcs, contours, curves, and irregular shapes.

Pros

Lightweight but sturdy with a solid base that has 4 rubber feet. Operates at 30 strokes per minute, has a 14-inch cast iron worktable, and a true round design for flexibility. Offers onboard storage for all the sander’s parts.

Cons

Rarely, customers report receiving either a damaged unit or one that is missing a few smaller parts.

Why trust BestReviews?
BestReviews spends thousands of hours researching, analyzing, and testing products to recommend the best picks for most consumers. We only make money if you purchase a product through our links, and all opinions about the products are our own. About BestReviews
BestReviews spends thousands of hours researching, analyzing, and testing products to recommend the best picks for most consumers. We only make money if you purchase a product through our links, and all opinions about the products are our own. About BestReviews
BestReviews spends thousands of hours researching, analyzing, and testing products to recommend the best picks for most consumers. We buy all products with our own funds, and we never accept free products from manufacturers.About BestReviews
HOW WE TESTED

We recommend these products based on an intensive research process that's designed to cut through the noise and find the top products in this space. Guided by experts, we spend hours looking into the factors that matter, to bring you these selections.

52
Models
Considered
170
Consumers
Consulted
16
Hours
Researched
Category cover

Buying guide for best spindle sanders

Hand sanding soon gets pretty laborious, and a couple of hours doing it will make your arms ache! The solution, of course, is powered tools, and there are numerous different sanding machines available. Although spindle sanders aren’t the most widely used, they are nevertheless well worth considering, particularly for more creative furniture makers and artistic craftspeople.

Although spindle sanders are capable of sanding flat surfaces, their big advantage comes when dealing with circles, curves, and irregular shapes. No other machine comes close to their speed and versatility, whether you’re finishing small components for toys or large decorative moldings. This ability to work with various shapes makes them a particularly popular companion for bandsaws.

spindle sander1
We think of a spindle sander as a tool for creating a nice, smooth finish. However, with a coarse sanding sleeve, it can offer surprisingly fast stock removal, and with a bit of practice, it can do it very accurately, too.

Key considerations

Almost all current versions of these tools are called oscillating spindle sanders, meaning that as well as rotating rapidly, the sanding drum moves up and down. This constantly changes the area of the sandpaper sleeve on the work, thus continuously offering a fresh cutting surface. It’s more efficient, it virtually eliminates the chances of scorching, and the sandpaper sleeve lasts longer. The main areas where these machines differ are in power, table size, and flexibility.

Power

Power is a major consideration. Most spindle sanders quote oscillations per minute (opm), which are generally around 60, and speed of rotation, which can be anywhere from 1,500 to 3,000 rotations per minute (rpm). That gives you useful numbers for comparison, but if you haven’t got enough power, the machine won’t generate enough torque. In that case, the drum will either stall under load or the motor will struggle. If it’s put under greater strain than it’s designed for, it will shorten the tool’s working life.

With small diameter drums, and modest workpiece sizes, it’s seldom a problem, but the larger the drum diameter and the thicker the work, the greater the power demand. Output should start at 1/4 horsepower (hp) on small benchtop spindle sanders, rising to 1/2 horsepower on professional-standard models, and 1 horsepower or more on big, floor-standing machines.

Table

Size: This is important for supporting the workpiece. The spindle sander’s action, both rotating and up and down, means it’s impractical to hold the job against the drum freehand. You need to be able to apply a little downward pressure, as well as guide the work horizontally. If there isn’t enough surface available and the work rocks up and down, the finish will be ruined. It could even be dangerous. As a general rule, the larger the job you’re working on, the bigger the table you need. You’ll probably pay a bit more, and there are probably space considerations, but you’ll never regret getting the biggest table you can afford.

Material: While we’re on the subject of tables, a quick note about material. The tables on some cheap spindle sanders are aluminum. That’s not a problem if they’re well reinforced (they usually have supporting ribs underneath), but cast iron is always better. It’s stronger and more durable, and the added weight helps damp vibration.

Flexibility

This comes in several forms:

Diameter: Drums of different diameters provide a variety of sanding radii, so you can work easily on both tight or shallow curves. Four is usually the minimum. We’ve seen up to ten on floor-standing machines

Height: The taller the sanding drum is, the thicker the piece you can work on. To assess the maximum, you need to factor in the rise and fall of the oscillations, not just the height of the drum.

Angle: Being able to adjust the table for angle makes a big difference, not only in allowing you to sand bevels but also to create all kinds of compound shapes.

Although a spindle sander is a quite substantial unit, it’s still a good idea to bolt down a benchtop model where practical. That way there’s no chance of sudden movement ruining your work.

STAFF
BestReviews

Portable spindle sanders

So far we’ve looked at benchtop or floor-standing models, but there are also handheld oscillating spindle sanders for use when it’s not practical to take the job to the table and for working in confined spaces.

These usually have a 5-amp motor, and while they produce considerably less torque than other models, it’s sufficient for the drums used, which are unlikely to exceed a maximum of 1 1/2 inches.

These tools are invariably corded, so you might want to check the cord length, though it’s likely you’ll need an extension cord. Some are supplied with clamps so you can fix them to a bench inverted and use them in the same way as other spindle sanders. However, the underside of the machine offers a very restricted table area, so their usefulness like this is a bit limited.

spindle sander2
DID YOU KNOW?
Spindle sander sleeves will eventually need replacing. There are very cheap sets available, but you need to be careful. Low-quality sleeves wear out rapidly and result in a poor finish and even scorching of the workpiece. Spending a few extra bucks will avoid these problems.
STAFF
BestReviews

Spindle sander prices

Inexpensive: The cheapest spindle sanders are portable handheld versions, many of which are around $55 to $70 (though some top $100). Benchtop models start at about $140.

Mid-range: From $150 and up, mostly what you’re paying extra for is increased power and a larger table. At $300 and above, you’re looking at benchtop tools of a standard good enough for demanding pro shops. These can go as high as $600.

Expensive: Floor-standing spindle sanders command the highest prices and are quite a jump from even the best benchtop models. You’re unlikely to find one for less than $1,000, and $1,500 isn’t unusual.

Check the dust port size. They aren’t all the same and may not fit your existing shop vac or extractor. Don’t worry, though, because there are lots of low-cost adapters available.

STAFF
BestReviews

Using a pillar drill as a spindle sander

Although many oscillating spindle sanders are very affordable, if you’re on a very tight budget and already own a pillar drill, it does offer a cheap alternative. It’s even possible to use a power drill, though we don’t recommend it. Controlling them freehand can be quite difficult.

What you need is a sanding drum (or sanding drum set) designed for these machines. They look a lot like the drums used on spindle sanders, but they have a shank that fits in a standard drill chuck. In effect, making an upside-down spindle sander.

There are two types. The first, like a spindle sander, uses premade sleeves. As an example, the Big Horn Rubber Sanding Drum Set is a low-cost kit of four different-size drums in a handy case. It is very popular and an excellent value. The other option is a sleeveless model like the 3 x 6-inch Peachtree Woodworking Sanding Drum. Although it’s more expensive, the big advantage here is that you can cut your own sandpaper, so you need never run out of a particular grit. You might also save money in the long run.

spindle sander3
Simple shop-made jigs can make lots of jobs easier and extend the versatility of your tool. You can find dozens of ideas and free plans online.

FAQ

Q. Are there any safety precautions I need to take with a spindle sander?

A. While it’s basically a very safe machine, you do need to be a bit careful.

  • Keep fingers away from the sand drum. A drum spinning at over 1,500 revolutions per minute will quickly remove skin from your fingers!
  • Don’t wear gloves or loose clothing. Items like neckties could get caught as the drum spins.
  • Feed the workpiece from the left, against the rotation. Keep it in contact with the table at all times. Introducing it from the right can result in it being snatched and thrown across the shop.
  • Wear a dust mask. The main health hazard is the dust created, which can cause respiratory problems. Wear a lightweight dust mask, and always connect a dust collector or other extraction mechanism.
  • Wear ear protection. Some spindle sanders are very loud, so earplugs are a good idea.

Q. Do spindle sanders need much maintenance?

A. Very little. General cleanliness is the main thing. Your dust extraction method should clear most of the debris, but you should give the machine a quick brush down after each use, and make sure sawdust isn’t collecting in any particular area. If the table gets dirty, you can clean it with a little spirit or rubbing alcohol. Eventually, the motor brushes may need replacing, but that shouldn’t be for at least a couple of years.

Q. Is an oscillating belt and spindle sander a good idea?

A. They do offer more versatility than a spindle sander on its own, though belt size (and thus capacity) is quite limited, which might explain why they aren’t more popular. If you’ve got a lot of small items to sand, one could be a viable choice, but for general-purpose sanding, a belt and disk sander is perhaps a better combination.
