Best Multimeters

Updated May 2022
Bottom line
Pros
Cons

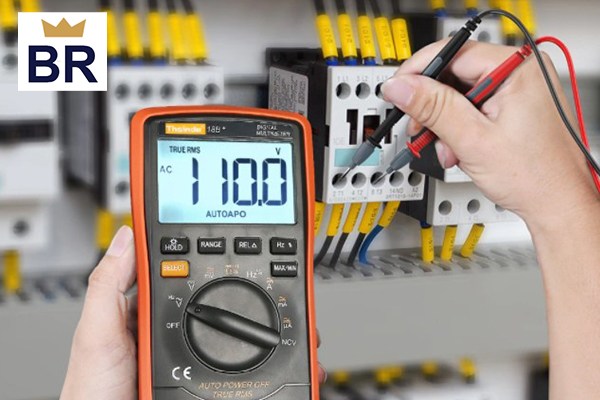

Best of the Best
Thsinde Digital Multimeter
Thsinde
Digital Multimeter
Check Price
Bottom Line

Practical for most home and auto applications, but not a pro-level tool. If you turn to the owners' manual for help, you may not find it there.

Pros

Reads the 10 most needed functions and has a vivid LCD screen w/backlight. Can be used wirelessly or with leads. Solid build and affordable price.

Cons

Sometimes takes several tries to get voltage readings. Issues with capacitance readings have been reported. User manual could be more detailed.

Best Bang for the Buck

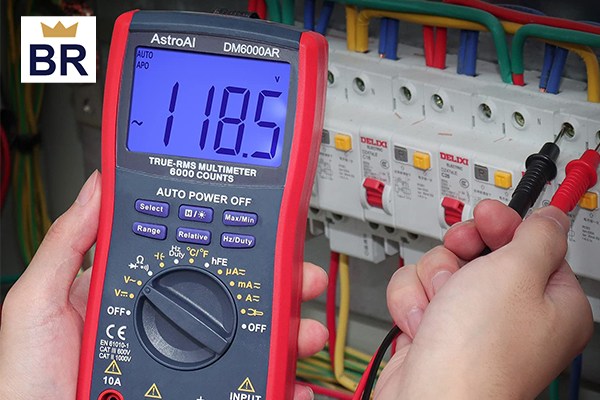

AstroAI TRMS 6000 Counts Digital Multimeter
AstroAI
TRMS 6000 Counts Digital Multimeter
Check Price
Bottom Line

With a high number of functions found in pro-grade multimeters and a lower price, it's by far the best choice if you want a top-notch budget deal.

Pros

A great value thanks to features and capabilities that compare to commercial-level tools: auto ranging, rugged build, sharp readout, and an impressive range of tests.

Cons

Lacks a few high-end features (like non-contact voltage testing).

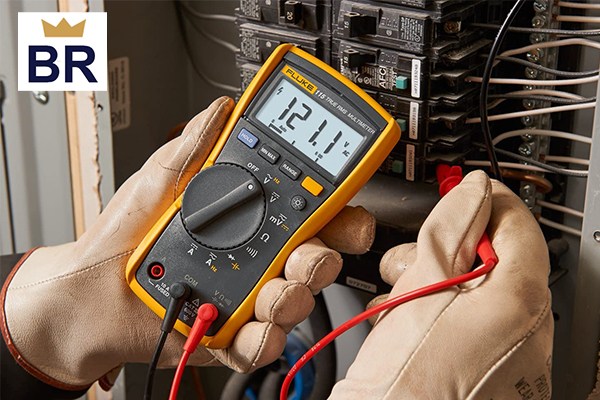

Fluke 115 Compact True-RMS Digital Multimeter
Fluke
115 Compact True-RMS Digital Multimeter
Check Price
Bottom Line

A top-of-the-line multimeter for DIY applications, it's also capable of handling most pro-level electric testing needs. Competitors can't beat its safety, accuracy, and intuitiveness.

Pros

Versatile; accurately measures continuity, resistance, capacitance, frequency, and more. Has a solid build, large back-lit screen, and excellent safety rating (CAT III, 60V).

Cons

A few reports of missing or faulty parts upon arrival.

DROK USB 2.0 Digital Multimeter
DROK
USB 2.0 Digital Multimeter
Check Price
Bottom Line

In spite of its limitations, it's an affordable, reliable multimeter that accurately reads volts/amps/watts and has a capacity for various devices.

Pros

A USB-compatible model with 2 ports. Easy to use. Ideal for mobile/portable device readings. Earns praise for accuracy and bright digital display.

Cons

Not as versatile as other multimeters. Some reports of faulty units. Owners' manual is confusing.

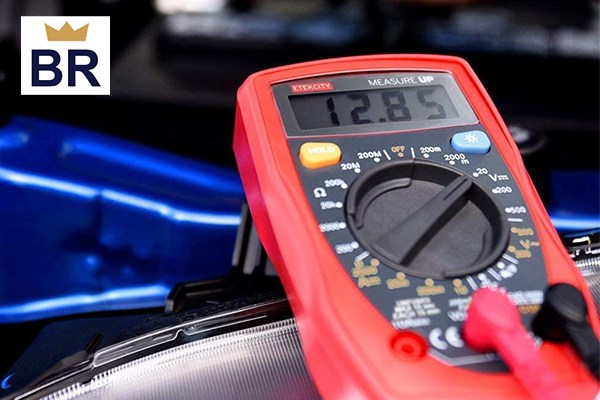

Etekcity MSR-R500 Digital Multimeters
Etekcity
MSR-R500 Digital Multimeters
Check Price
Bottom Line

Choose it if you don't want to spend a lot and an entry-level model is all you need. However, it's not an ideal choice for pros or applications that depend highly on accuracy.

Pros

Budget price, overload protection, and multi-measuring abilities make it a top pick for do-it-yourselfers for home and auto applications. It is compact and easy to use.

Cons

Screen is on the small side, and backlight has been known to fail. Feels flimsy compared to higher-priced models. Some accuracy issues have been reported.

Why trust BestReviews?
BestReviews spends thousands of hours researching, analyzing, and testing products to recommend the best picks for most consumers. We only make money if you purchase a product through our links, and all opinions about the products are our own. About BestReviews
BestReviews spends thousands of hours researching, analyzing, and testing products to recommend the best picks for most consumers. We only make money if you purchase a product through our links, and all opinions about the products are our own. About BestReviews
BestReviews spends thousands of hours researching, analyzing, and testing products to recommend the best picks for most consumers. We buy all products with our own funds, and we never accept free products from manufacturers.About BestReviews
HOW WE TESTED

We recommend these products based on an intensive research process that's designed to cut through the noise and find the top products in this space. Guided by experts, we spend hours looking into the factors that matter, to bring you these selections.

60
Models
Considered
63
Consumers
Consulted
10
Hours
Researched
Category cover

Buying guide for best multimeters

At first glance, a multimeter seems like a tool that only professional electricians and electrical engineers would care about. But to the experienced do-it-yourselfer or hobbyist, the multimeter is an indispensable asset to the home toolkit.

Unlike an AC voltage checker, which simply tells you that an electrical current is present in wiring (an important safety check), a multimeter gives a precise measurement of voltage and current for many types of electrical circuits – that’s why it’s called a “multi” meter. This enables the user to determine wiring capacity, or ensure that current is traveling through a circuit in the expected, safe way.

Of course, there are many multimeters to choose from. Which will best serve your purpose? At BestReviews, we guide you through the buying process to find the multimeter that meets your needs. If you’re ready to purchase, check out our recommendations in the product list above. Or, for more information about comparing multimeter brands and models, read our shopping guide, below.

Content Image

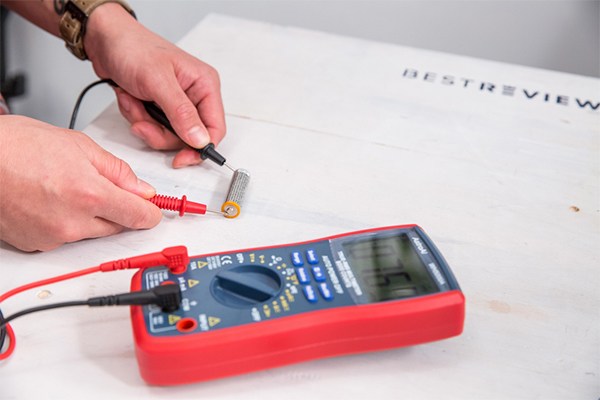

Make sure your multimeter is working properly before each use by testing it on a known voltage source (a low-voltage circuit that you know is good) or a proving unit.

Safety

When working with any electrical component or equipment, safety is absolutely paramount. A multimeter is simply test equipment, and it won’t protect you from electrical shock.

Follow safety procedures when working with electricity at any voltage. Make sure that you won’t accidentally “ground” when working by wearing appropriate gear (sturdy, non-conductive shoes, clothes that won’t interfere with the work you’re doing, protective, non-conductive work gloves) and using tools that are rated for electrical work. Your tools should also have non-conductive grips. Always double check your work, and never be careless around wiring or circuitry.Working with AC (alternating current) can be especially dangerous. This is the kind of current used in your home’s wiring. Only those with experience and skill should use a multimeter on or work around AC circuits and wiring.

What is a multimeter?

A multimeter can measure voltage, resistance or current in a wiring circuit. This makes it a key part of diagnosing circuitry problems. For example, if a light switch in your home has to be replaced frequently, or if a fuse in your car keeps blowing, an electrician may use a multimeter as part of the diagnostic process to test how well current travels through a circuit. They can also determine whether there is resistance within a circuit, and measure the voltage or amperage.

For hobbyists – for example, if you’re building a circuit board – the multimeter can test circuits to make sure they’re powered at the correct voltage.

More advanced multimeters offer additional measurements such as microamps, decibels, rotations per minute, even temperature and humidity.

Learning to use a multimeter can be fun and give you a fascinating look into how circuitry works.

Content Image
Caution

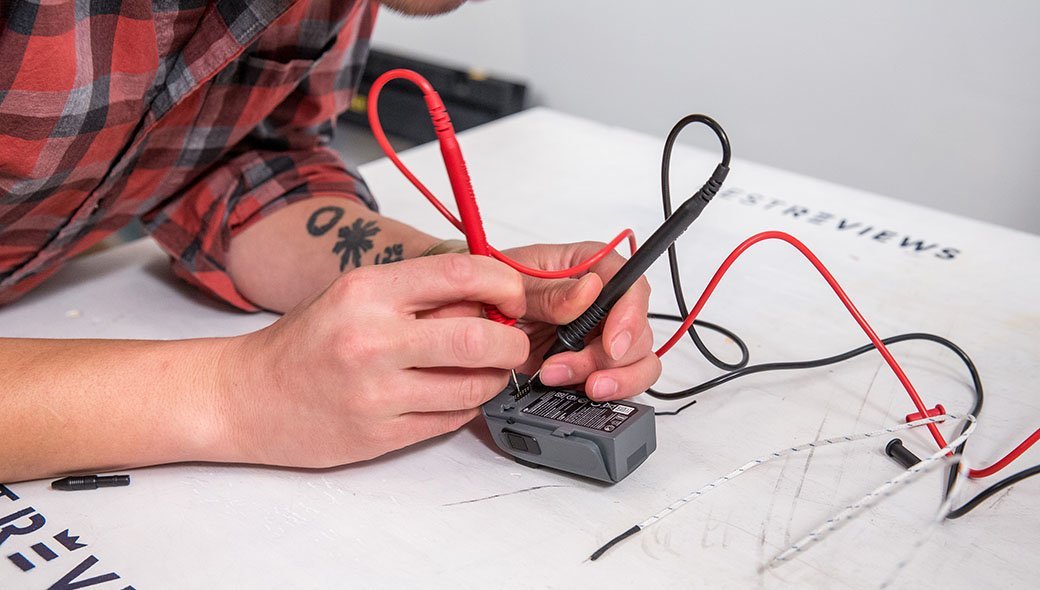

Never use damaged test probes. Check them before each use, and replace them if they are bent or otherwise damaged.
STAFF
BestReviews

Key parts of a multimeter

Display

A digital or quartz crystal display on the front of the device shows alphanumeric symbols (1, 2, 3 and ABC), up to at least four digits, as well as a negative sign.

Selection dial

A large knob in the center of the multimeter, usually below the display, with a number of different measurement settings.

Ports

Connection points, usually located at the front of the multimeter, where one end of the multimeter’s probes are attached. One port will always be marked “COM,” which stands for “common,” and is connected to the ground (or negative) probe.

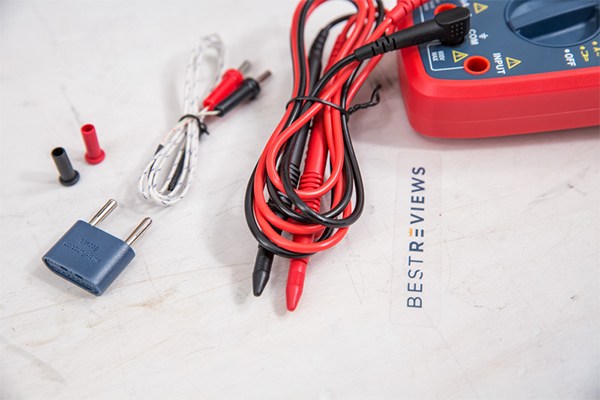

Wires

Multimeters come with at least one red and one black wire. One end of each wire has a connector which fits into the ports on the multimeter.

Probes

The other end of each multimeter wire is connected to a probe. There are several types of probes that can be used with a multimeter, but the most common ones in use include alligator clips, which work well when testing circuits on a breadboard, and test probes, which are simply held against each end of a circuit (and are also inexpensive to replace). Many multimeters come with multiple probe types that can be quickly attached to the wires.

Types of multimeters

  • Digital: The most common type of multimeter on the market today, these offer an easy-to-read digital screen.

  • Analog: This older type of multimeter displays its readings via a needle over a chart of measurements. These can be much harder for the layperson to read, but many users find them to be easier to use when working with highly sensitive measurements.

  • Single probe: Most often seen in AC voltage detectors used to test current.

  • Clamp: Used by electricians to more safely measure AC current, this single-purpose meter clamps around a wire to measure the current. Clamp meters must have a rating that matches or is better than the wire being measured in order to be used safely.

Models and prices

  • Pen: These compact, pen-shaped multimeters (which actually look more like futuristic screwdrivers than pens) can be held in one hand and have a single test probe for non-contact AC voltage detection. They have limited functions, and they’re among the lower-priced multimeters, ranging between $27 and $40.
  • Handheld: The most common type of multimeter, most have a boxy, rectangular shape and are pretty simple to use, with a large selection dial and three ports. Handheld multimeters can be purchased for as little as $10 to $40, with high quality models retailing between $66 and $190.
  • Bench or box: These high-end multimeters are used by trained electricians and engineers to test a much wider range of circuitry. They have more ports and a larger setting selection, as well as a much more robust digital (or even LCD) display to show more detailed readings. These start at about $300 and can reach $1,500 or higher.

What to look for in a multimeter

A good multimeter should offer three key features above almost everything else:

  • The capability to select voltage ranges

  • Ohm (resistance) measurement

  • The ability to switch between AC and DC voltages

Determine what you’ll need from a multimeter before your purchase. Are you working with computers? Having a multimeter that reads DC current is important. If you’re working with AC wiring, then a multimeter that reads AC current is essential.

Know how much current you will typically be reading, also known as the tolerance range. For example, if you’re testing a 12V DC power supply inside a computer, the multimeter you’re using should have a setting for that range. (Typically a 12V circuit is measured using 20V setting on the multimeter, which allows you to measure circuitry up to 20 volts, but no more than that.) If you’re testing 120V AC wiring, the multimeter must be set to that tolerance.

Most handheld multimeters have AC and DC settings in the ranges typical to most common computing, auto repair and DIY needs. However, always check those settings closely to be certain that the multimeter has the ranges that you need for your repair or build project.

An ohm measurement capability is important to measure continuity vs. resistance within a circuit. For example, if a wire is broken and no current is passing through it, the ohm reading on the multimeter will indicate “infinite” resistance. If a wire is good, current will pass through it and very little resistance will be indicated when using an ohm measurement setting.

Other features that are nice to have, but not as important. Some of these include:

  • Autoranging: This feature automatically changes the multimeter’s range to the setting that best matches the circuitry it’s measuring. It can be handy to have, but less experienced multimeter users may not be able to get the most out of this feature.
  • Temperature probe: This is helpful for measuring the temperature of certain electronics or the temperature inside a computer case, which can help when trying to diagnose certain circuitry problems. It’s not strictly necessary for most common multimeter applications.
  • Amperage measurement: Some users do need to measure amperage, but in many cases, particularly when working with computers, this setting isn’t needed.
Content Image

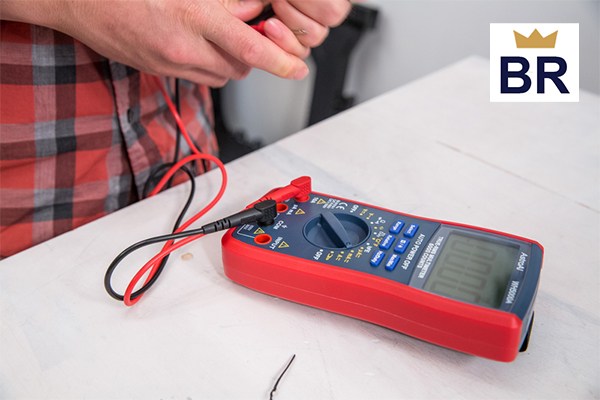

The battery that powers portable multimeters should be checked frequently and replaced when necessary. A low battery may affect readings.

FAQ

Q. What’s the best way to tell if a multimeter is right for the job I need it for?
A.
If you know the voltage range you’ll most often measure, check the multimeter’s maximum voltage rating and current rating. These should be higher than the voltage you plan to measure – otherwise you can damage the multimeter, or you could even sustain an electrical shock.

Q. A friend told me if I don’t set the multimeter to the right setting after each use, I can break it when testing a circuit. What does that mean?
A.
Each time that you finish using a multimeter and prepare to put it away, put it into a “friendly” mode. That is, connect the probes to the multimeter in the “read voltage” configuration (if you changed their configuration to current mode, for example), and set the dial to read DC voltage. Because users tend to quickly grab the multimeter to measure voltage, this ensures that you don’t accidentally complete a circuit in the wrong mode, which can damage the fuse or the multimeter.

Q. Do the red and black wiring colors on the probe wires really matter?
A.
They can be useful when measuring voltage, since black wiring usually signals the “ground” wire or “common” wire in electrical work. When measuring current, it doesn’t matter what color the probe wiring is, but sticking with the “black wire means ground, red wire for live” guideline is a good practice.

Q. How useful is the autoranging function on a multimeter?
A.
Autoranging is sometimes listed as a selling point on lower-priced multimeters, but its usefulness depends on the skill and knowledge of the user. Autoranging multimeters automatically change shift to the most appropriate range for the application. However, it doesn’t make a multimeter easier to use – especially if measuring voltage or current that is fluctuating. In that case, switching the multimeter to manual mode works better.
